SAMCO 90SY-M Series AC Permanent Magnet Servo Motors

Detailed Info:

Series: 90SY-M AC Permanent Magnet Servo Motors

Flange specification(mm): 86

Temperature: 0℃～55℃

Number of pole pairs: 4

Incremental encoder line: 2500/5000PPR

Absolute encoder:17bit

Absolute class: B

Safety Class: IP54

Insulation and voltage resistance: AC1500V,1Minute

Insulation resistance: DC500V, 10MΩ above

Structure: Self-cooling

Vibration: Under 2.5G

Altitude: Under 1000m

Work system: Continuous

Installation Method: Flange installation

Technical parameters:

Motor Model	90SY-M02430	90SY-M04025
Rated Power(Kw)	0.75	1.0
Rated Voltage(V)	220	220
Rated Current(A)	3	4
Max Current(A)	9	12
Rated Speed(rpm)	3000	3000
Max speed(rpm)	3300	3300
Rated Torque(N.m)	2.4	4
Max Torque(N.m)	7.1	12
Rotor Inertia(KG.m²)	2.45X10﹣4	3.7X10﹣4
Motor Weight(Kg)	3.4	4.13

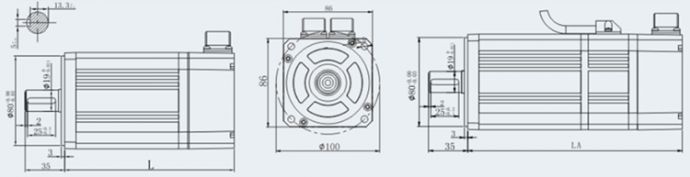

Mounting dimensions:

* The above is a standard installation dimensions can change according to customer requirements
* No percussion motor shaft, otherwise it will damage the other end of the shaft encoder

Encoder connection table:

Winding wire	U	V	W	PE
Socket number	2	3	4	1

Brake wire	PE	Braking	Braking
Socket number	3	1	2

Note: DC24V brake voltage (no polarity requirements)

Encoder wiring table:

The definition of signal	5V	OV	A+	B+	Z+	A-	B-	Z-	U+	V+	W+	U-	V-	W-	PE
Socket number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1
