SAMCO Z04ZJY AC Spindle Servo Motor


Detailed Info:

Series: Z04ZJY AC Spindle Servo Motor

Temperature: -15℃~55

Number of pole pairs: 4

Incremental encoder line: 1024PPR

Absolute encoder:17bit

Absolute class: B

Safety Class: IP55

Insulation and voltage resistance: AC1500V,1Minute

Insulation resistance: DC500V, 10MΩ above

Structure: Self-cooling

Vibration: Under 2.5G

Altitude: Under 1000m

Work system: Continuous

Installation Method: Flange installation


Technical parameters:

Motor   Model

204ZJY-4-2.2-15-X

204ZJY-4-3.7-15-X

204ZJY-4-5.5-15-X

204ZJY-4-7.5-15-X

Rated   Power(KW)

2.2

3.7

  5.5

7.5

Rated   Voltage(V)

380

  380

380

380

Rated   Current(A)

5.1

  8

11.5

16

Rated   Torque(N.m)

14

24

  35

50

  Rated   Frequency(HZ)

50

50

50

50

  Rated   speed(rpm)

1500

1500

1500

1500

Max   speed(rpm)

6000

6000

6000

6000

Rotor   inertia(G.D2)

0.01

0.014

0.015

0.025

Fan   power(W)

75

75

75

75

Fan   voltage(V)

380

380

380

380

How to use:

1. U, V, W motor wiring must maintain a relationship with U, V, W terminal driver;

2. No end or the motor axial force on the motor shaft, to avoid damage to the encoder and motor bearing;

3. To ensure that the motor terminal box terminal effectively grounded in mainland;

4. Motor speed control, must ensure the normal operation of cooling fan;

5. The surface temperature of the running process, the motor 5 is high, avoid touching to prevent burns by hand;

6. Fan connection must be consistent with the wind in the sign.

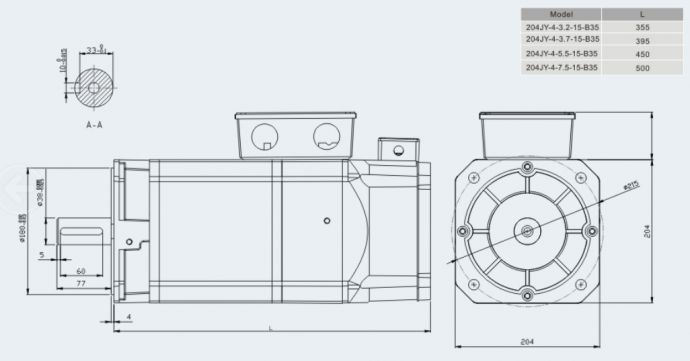

Installation size chart: unit=mm

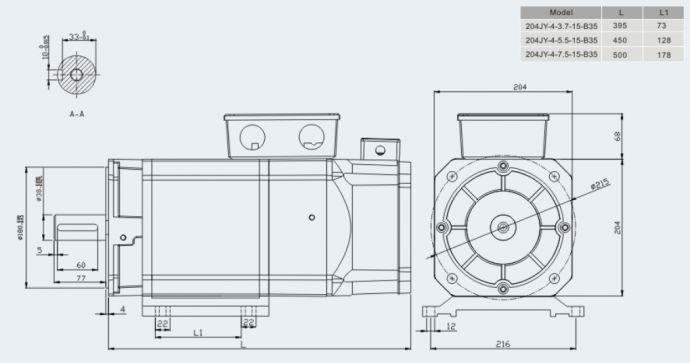

Flange installation dimension: unit=mm



Terminal description:

Serial number

1

2

3

4

5

6

7

8

9

10

Signal

Shield

Z+

B+

A+

0V

T

Z-

B-

A-

+5V

Note: T is the motor thermal protection switch
